Galvanized 358 Anti Climb Welded Mesh Making Machine

Galvanized Wire Mesh High Security 358 Anti Climb Fence Mesh Welding Machine

Fence Mesh Welding Machine Description

The fence mesh welding machine is full automatic.The machine is CNC welding machine.There are visual touch screen in the control panel.This is the heart of the control system.The worker can operate the machine just input data in the screen.After input the data,the worker needs to put weft wire to the weft wire hopper and then run the machine.The machine will weld automatically.After the mesh is cut to panels,the worker needs to pick it up and tie it.The machine will weld and cut automatically. The workload of the workers is very small.

.

Fence Mesh Welding Machine Advantage

1. Panasonic/Schneider electric components and visual touch screen;

2. "V" type slot tunnel, suitable for different wire diameter, no need adjustment.

3. 600mm2 upper copper wires, much more than before, much easier for electric conduction.

4. The cross wires should be put into the hopper manually, then fall automatically.It is equipped with SMC (Japan) air cylinder.

5. Pneumatic welding. The welding electrodes are controlled by SMC (Japan) air cylinders.30*30*30mm, water cooling electrode base.

6. Cast water-cooling transformers, One transformer control 4 welding electrodes.The welding degree is adjusted by PLC.

Fence Mesh Welding Machine Parameter

Main Welding Machine with control system

Copper Material: We use high quality copper material for the machine welding electrodes,transformer loops.

Control system: The visual touch screen is just like a computer.Easy to operate.

Mesh Pulling System: It is controlled by servo motor and air cylinders.It can pull the mesh in smooth speed.

Automatic Mesh Cutting Machine:This device can cut the mesh to panels in different length.

Finish Mesh

galvanized welded mesh making machine

358 welded mesh making machine

anti climb welded mesh making machine

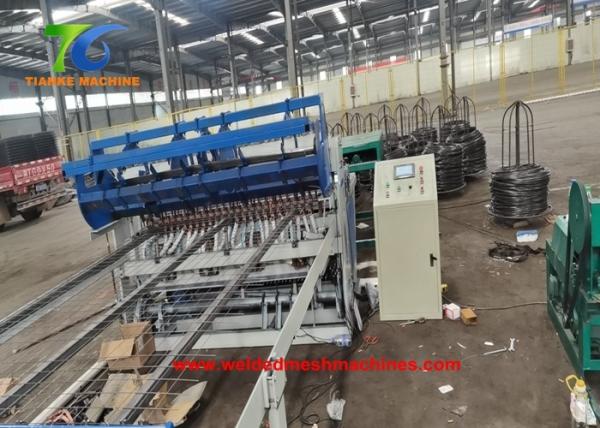

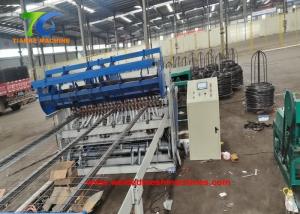

Galvanized 358 Anti Climb Welded Mesh Making Machine Images
