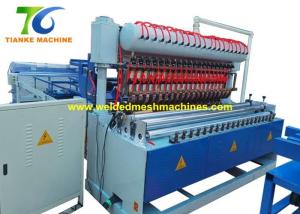

Reinforcement Mesh In Building Reinforcing Mesh Welding Machine
Reinforcing Mesh Welding Machine Description
Reinforcing mesh welding line,also called BRC mesh welding machine,construction mesh welding machine.Because of more than 20 years experience in design and produce, BRC mesh welding machine is featured by high capacity,easy operation and precise control.
Reinforcing Mesh Welding Machine Technology
1. Longitude wire sending Famous servo motor (1.5kw) and planetary reducer for sending longitude wires when welding, can save time.
2. Cross wire feeding The cross wire feeder has more capacity and is controlled by step motor, automatic, can bear a bulk of wires.
3. Welding electrodes Welding electrodes are made of pure red copper and chromised bronze, durable, can be Used at least 3-6 months
4. Welding transformers 12 pcs cast water-cooling transformers, high efficiency. The welding degree is adjusted by PLC.
5. Brake motor &helical gear reducer The principal axis connects brake motor &helical gear reducer directly strong power, high stable. (Patent technology)
6. Mesh pulling system It is controlled by servo motor (2kw)&planetary reducer and air cylinders, advanced.
Reinforcing Mesh Welding Machine Parameter
| Wire rod | 6-12mm |
| Mesh panel width | 2500 mm |
| Mesh panel length | 4000 mm |
| Mesh opening size | 100-300mm |
| Welding frequency | 50-70times/min |
| Transformer KVA water cooling | 125KVA*12sets |
| Voltage | 380v 50hz ( customized ) |
| Control system | PLC visual touch screen |
| Welding type | Pneumatic |
| Mesh panel Pulling type | Servo motor |
| Wire feeding type | Pre straightening and cutting |
| Cross wire hopper feeder | 1 ton |
| Trolley power | 3.5KW servo motor +Precision reducer |
| Seine runway | rack gear |
| Seine car | Pneumatic opening and closing (noise reduction, precise return) |
| Outside dimension(length*width*height) | 20*3.7*1.9m |
| Weight | 8tons |
| Wire straightening and cutting machine | 2 sets |
Application of Reinforcing Mesh
1. For fencing mesh which used for highway ,railway and various function of protection.
2. For construction which used for basis of high building,roof mesh ,floor mesh.
3. It is also widely used in agriculture and poultry mesh,farming mesh and so on.
