1.8mm Programmable System Chain Link Fence Machine Diamond Mesh Wire Weaving

Name: 18mm Programmable System Chain Link Fence Machine Diamond Mesh Wire Weaving
Brand: Tianke
Price: 1 USD

Brand Name : Tianke

Model Number : TK-GHJ6000

Place of Origin : Hebei,China

MOQ : One set

Payment Terms : Western Union, T/T, L/C

Supply Ability : 25 sets/month

Delivery Time : 5 work days

Packaging Details : The main machine will be fixed in the container by steel wire rope to make it stable.

Product Name : Diamond Mesh Wire Weaving Machine

Wire Diameter : 1.8 - 4.0 mm

Machine Type : Full Automatic diamond mesh weaving machine

Finish Product : Diamond mesh wire in rolls

Material : Galvanized wire,PVC coated wire

After-sales service provided : Engineers available to service machinery oversea,Video technical support,Field installation

Power : 5.5 kw servo motor

Mesh Width : Max.6000mm ( Customized )

Application : Used as mesh fence in stadium, residence community

Machine Color : Blue,Red,Orange ( Customized )

Voltage : 380v / 220v / 415v / 440v

Weight : 3500 kg

Contact Now

Chain Link Diamond Mesh Wire Weaving Machine Programmable System

Introduction of Diamond Mesh Wire Weaving Machine

The diamond mesh wire weaving machine is equipped with programmable system.This system is PLC control with visual touch screen.It is just like a computer,so it is very easy for the worker to operate the machine.The machine is devided into two types,single wire diamond mesh machine and double wire diamond mesh machine.All the twp types are widely popular during the customers.The machine is fully automatic,one worker can operate two machines easily.

Chain Link Fence Making Machine Feature

The machine has three parts,diamond shape forming part,wire weaving part,mesh rolling part.All the three parts are controlled by the PLC system.The worker can operate the machine in the visual touch screen.Different size of diamond shape are made by different moulds.The wire feeding has single wire feeding and double wire feeding.

Chain Link Fence Making Machine Parameter

Model	Single Wire	Double Wire
Wire diameter	1.3-4mm	1.5-4mm
Mesh size	20-100mm	25-100mm
Mesh width	0.5-4m	0.5-4m
Speed	70-80m²/h	120-180m²/h
Mould Dies	2 sets mould for free
Mesh length	30m, adjustable freely as your request
Mesh side	Knuckled and twisted, or knuckle, or twisted
Raw material	Galvanized wire, PVC coated wire, etc.
Machine size	4.22.21.7m	6.71.431.8m
Weight	2500kg	4200kg
Operation	One person can operate two or three machines

Application

The product is wildly used as prevent for road, railway, airport, residence district, seaport, garden, feeding and husbandry.

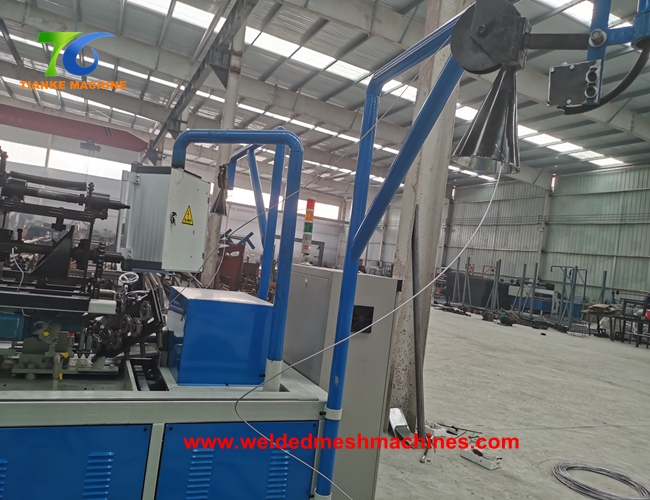

Chain Link Fence Making Machine Detail

Double Wire Spiral
