Welded Chicken Cage Wire Mesh Panel Netting Welding Machine
Panel Mesh Netting Welding Machine Description
This panel mesh netting welding machine belongs to resistance welding machine.It can make roll mesh and panel mesh.The welding machine adopts PLC control system,easy to operate and more accurate data.The machine use high quality copper bar as welding electrodes.Wear resistance.And the heart of the machine is the welding transformer.The use of pure copper transformer can ensure firm welding and stable operation of the machine.If you make roll mesh,you can use the automatic mesh rolling machine.If you need panel mesh,you can use automatic mesh cutting machine.
.Panel Mesh Netting Welding Machine Feature
1.This machine cent-control and welding time are controlled by PLC program system . The input front-panel is composed of touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, separate welding. Surely,if the power supply is enough big,it can also adopt the welding at the same time.
2.Cross hopper feeds cross wires automatically with accurate position,pre-cut line wires fall and feed automatically from the special hopper, reduces welding waiting time, feed fast and locate accurately.
3.Our transformers adopts big power at 125KVA every one,which can ensure the welding quality in good condition and adopt water cooling system.
4.The greatest advantage is that you can adjust the distance of cross wire at random on the same one piece wire mesh sheet very easily, and only need to set the space required on the touch screen.
5.Pulling mesh way adapts servo motor back and forward according to the setting parameters into the touch screen,ensure the accurate position of the pulling mesh.
Panel Mesh Netting Welding Machine Advantage
1. Adjust mesh hole and wire diameter more convenient.
2. PLC programming control
3. Easy to operate and master
4. It can set the multi-languages as your requirements.
5.The weft wires be pre straightening and cutting then fed by weft wie feeder automatically.
6. With an inspecting device,it will alarm and stop the machine automatically if the wire dropping improperly.
Fence Mesh Welding Machine Parameter
| Model | TK-HWJ2000 | Mesh width | Max.2000m |
| Wire diameter | 2.5-6.0mm | Welding electrodes | 40pcs |
| Longitude wire space | Mostly 50-200mm | Cross wire space | Min.20mm |
| Welding transformer | 125kva*6pcs | Welding speed | 80-120 times/min |
| Longitude wire feeding | From wire coils | Cross wire feeding | Pre-straightened&pre-cut |
| Overall size | 7.5*2.7*1.6m | Weight | 2500kg |
Main Welding Machine with control system
Copper Welding Transformer: This is made of pure copper. Welding transformer is a new energy-saving structure, which can convert high voltage into high current. Ensure that the welding is firm and high energy efficiency.
Copper Material: We use high quality copper material for the machine welding electrodes,transformer loops.
Control system: The visual touch screen is just like a computer.Easy to operate.
Automatic Mesh Cutting Machine:This device can cut the mesh to panels in different length.

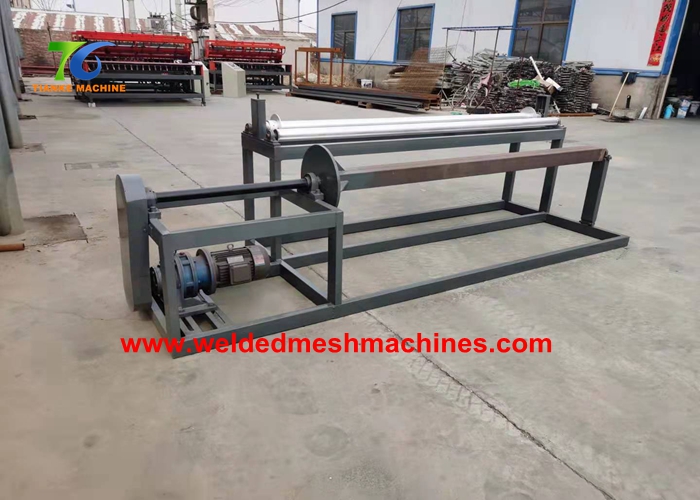

Mesh Rolling Machine: This machine can make the mesh to rolls.
Finish Mesh
