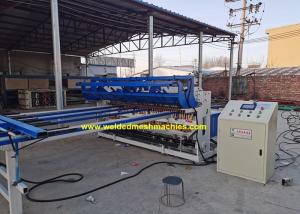

Steel Building Wire Mesh Panel Construction Mesh Welding Machine
Construction Mesh Welding Machine Description
This machine has a series of advantages including modern design, proper structure,simple operation,etc.It adopts advanced PLC computer controlling system for welding,with which the welding controlling accuracy is higher,leading no further processing of trimming weft wire edge,and the welding portion is firm and has no obvious burning marks,also the welding speed is fast and the mesh size is adjustable in a certain range.Due to these good performances,this automatic building steel wire mesh welding machine is widely used in manufacturing plant,building construction works and mine coal supporting.
Construction Mesh Welding Machine Technology
1. Construction mesh welding machine adopts electrical and electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, press at one time, separate welding.
2. The line wire is fed from coil wires; the cross wire is pre-cut, fed from hopper driven by step motor.
3. Mesh pulling system adopts servo motor back and forward, adjusting the cross space by setting the parameters on the touch screen,different from traditional mechanical adjustment.
4. The welding speed is fast and it is easy to learn and operate. Only two workers are enough.
5. The finished products can be roll mesh or panel.
Construction Mesh Welding Machine
1. Weft wire falling hopper: This device is controlled by stepper motor.The worker put a bundle of weft into the hopper,the hopper runs automatically.And the hopper has a platform,a part of weft wire can be put on the platform without frequent picking.
2.Welding electrode and copper connecting wire: The welding electrode is made of high chromium copper with good wear resistance and conductivity. The copper wire is made of pure copper wire, and the copper head is made of large copper billet.
Below information is required for quick quotation:
1. Wire diameter : From mm to mm.
2. Line wire space : From mm to mm.
Cross wire space : From mm to mm.
3. Mesh width: 1200mm ~1500mm~2100mm~2500mm~3000mm ( customized)
4. Industrial voltage : 380V 50HZ ( Customized)
5. Do you want to weld wire mesh panel or mesh in coil ?
6. Is the auxiliary equipment also require ?
